LSN WasteSensor Specifications

Detailed technical information about our LSN WasteSensor LoRaWAN technology, designed for professional waste management applications.

Product Overview

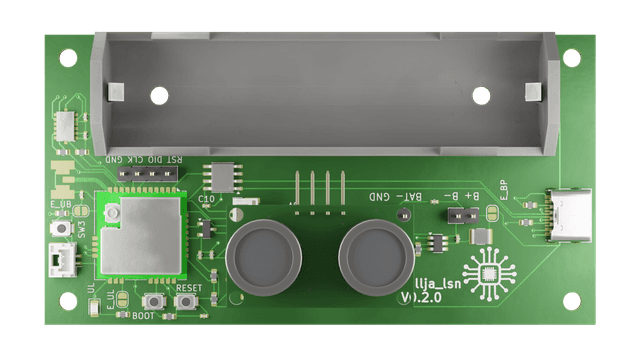

LSN WasteSensor PCB Design

LSN WasteSensor PCB

Complete sensor unit with integrated LoRaWAN communication

⚙️Hardware Specifications

Sensor Technology

  • • Ultrasonic distance measurement
  • • Vibration sensor for vandalism detection
  • • Magnetic field sensor for tampering detection
  • • Temperature sensor for fire detection
  • • Measurement range: 0.3m - 5.0m
  • • Accuracy: ±1mm
  • • Resolution: 0.1mm
  • • Beam angle: 15°

Power System

  • • Battery type: Replaceable Lithium 3.6V
  • • USB-C charging capability
  • • Battery life: 3+ years typical use
  • • Sleep mode current: <10μA
  • • Active mode current: 45mA

Physical Properties

  • • Dimensions: 120 × 80 × 45mm
  • • Weight: 285g
  • • Material: UV-resistant ABS
  • • IP67 waterproof rating
  • • Operating temp: -20°C to +60°C

📡Connectivity & Software

Wireless Communication

  • • LoRaWAN Class A/C
  • • Range: up to 15km (LoRaWAN)
  • • Frequency: 868MHz (EU) / 915MHz (US)
  • • Data transmission: Every 15min-24h
  • • ADR (Adaptive Data Rate) support

LoRaWAN Integrations

  • • The Things Network (TTN)
  • • ChirpStack Network Server
  • • Helium Network
  • • AWS IoT Core for LoRaWAN
  • • Azure IoT Hub
  • • Actility ThingPark

Data Platform

  • • Cloud-based analytics dashboard
  • • Real-time monitoring
  • • Historical data storage
  • • Custom alerts and notifications
  • • RESTful API access

Integration

  • • JSON/XML data formats
  • • Webhook notifications
  • • Third-party system integration
  • • Mobile app (iOS/Android)
  • • Web dashboard

Installation & Deployment

🔧

Easy Installation

Simple mounting system with magnetic base or bracket mounting. No tools required for basic installation.

📊

Quick Setup

Automatic network discovery and configuration. Devices come pre-configured and ready to deploy.

🌐

Network Ready

Seamless integration with existing LoRaWAN infrastructure or complete network deployment packages available.
